LTE CAT4 CPE

Item No.: XRC5241
XRC5241 is a highly advanced 4G Lte Wifi router,providing 4G network download rate up to 150Mbps,it can build up the high speed Internet access freely.
  • Chip platformZX297520V3E+RTL8192ES
  • Size166*121*42mm
  • Weight210g
  • Quantity
    -
    +
    Description Parameters
    Description


    Access to Internet Anytime and Anywhere

    SmileMbb 300Mbps LTE CAT4 Wireless Router | XRC5241





    Aplication Scenarios

    With the demand of smart device, 4G CPEs are widely used in
    commeticial and industrial sites.





    Plug & Play in Wireless Coverage

    Plug SIM Card to accesss internet directly, simple and convenient.






    4G / WAN Network Backup Internet Always

    Support 4G/RJ45(WAN) network backup,
    ethernet can be always to DSL or PON CPE even 4G network fail,
    guarantee the process of  video conference, business office etc.






    Full Coverage from 4G to WiFi

    Without FTTH or DSL to Home, one 4G SIM card can realize multiple devices to access the network,
    realize Wi-Fi full coverage and Ethernet access.






    Faster Speed,More Users

    LTE Cat4 high-speed access,  with downlink rate of 150Mbps,
    uplink rate of 50Mbps and WiFi Maximum rate of 300Mbps.
    It can access 32 devices, which is suitable for more and more smart homes.





    Support VPN Protocol Safer and Faster Routing

    VPN Pass-Through support  (PPTP, L2TP & IPSec), Firewall, Local & Remote management
    Suit for ATM, bank, and chain store, etc.






    Reliable Performance

    7×24-hour long-time stable operation, no network loss



    Parameters


    Technical parameter

    chip platform

    ZX297520V3E+RTL8192ES

    Frequent band

    XRC5241CN: FDD-LTE B1/B3/B5/B8; TDD-LTE B38/B39/B40/B41; WCDMA B1/B5/B8
    XRC5241EA1: FDD-LTE B1/B3/B5/B7/B8/B20; TDD-LTE B38/B41; WCDMA B1/B5/B8
    XRC5241EA2: FDD-LTE B1/B3/B5/B7/B8/B20; TDD-LTE B40; WCDMA B1/B5/B8
    XRC5241SA1: FDD-LTE B2/B4/B5/B7/B28A/B28B, TDD-LTE B40; WCDMA B2/B5
    XRC5241SA2: FDD-LTE B1/B3/B7/B8/B28A/B28B; TDD-LTE B40; WCDMA B1/B8
    XRC5241SA3:  FDD-LTE B2/B4/B5/B7/B28A/B28B/B66; TDD-LTE B40; WCDMA B2/B5

    Protocol Version

    4G: 3GPP R9 Cat4 + 3G: 3GPP R7

    LTE Speed

    LTE FDD: DL 150 Mbps, UL 50 Mbps

    Wi-Fi Standard

    802.11b:Up to 11 Mbps
    802.11g:Up to 54 Mbps
    802.11n:Up to 300 Mbps

    Size

    166*121*42mm

    Weight

    210g

    Power supply

    12V/1A

    Physical interface

    1*RJ45(10/100Mbps), 1*2FF USIM/SIM; 1*Micro USB; 1*DC Input Port

    LED

    POWER,WAN/LAN,WiFi,Network, signal strength

    Button

    Power;WPS;Reset

    Characteristic

    VPN Pass-Through Support (PPTP, L2TP & IPSec), Firewall,

    Local & Remote management



    LTE CAT4 CPE XRC5241

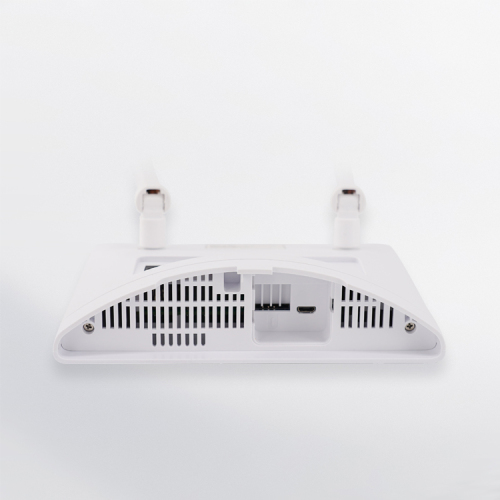

    Interface of XRC5241
