4G CAT6 & WiFi6 AX1800: Fast, Dual-Band Connectivity
Built-in 4000mAh Battery for Portable, On-the-Go Use
SIM Card Plug & Play: Stable Signal Even in Remote Areas

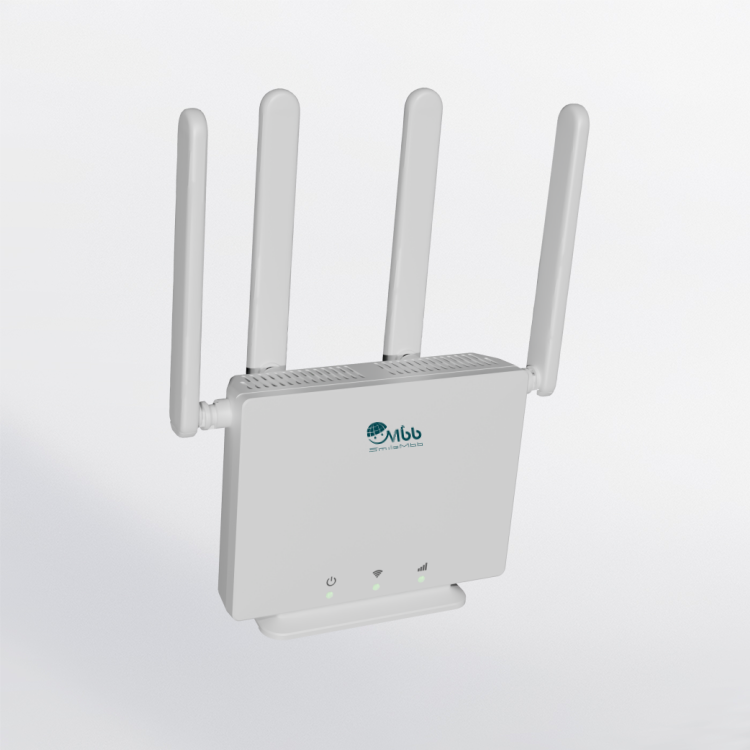

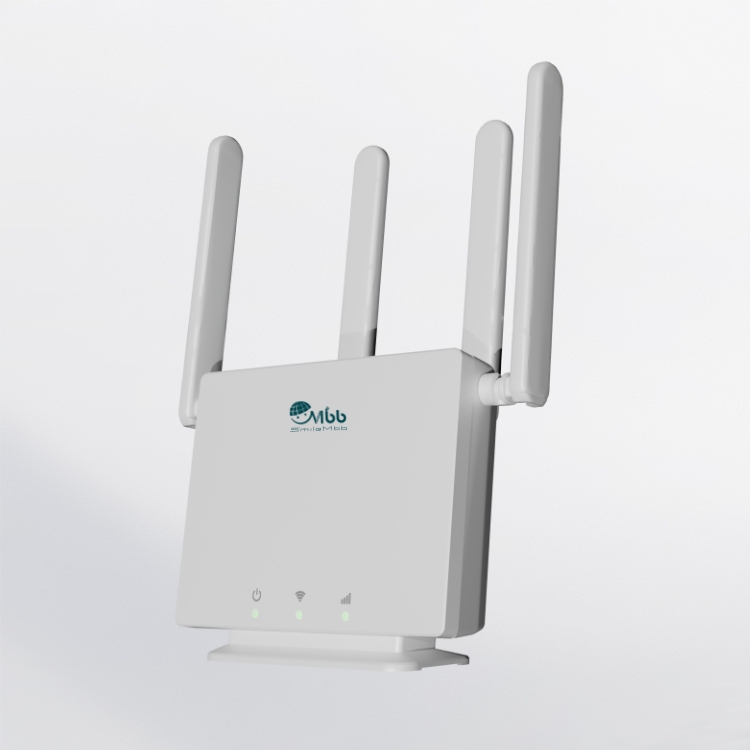

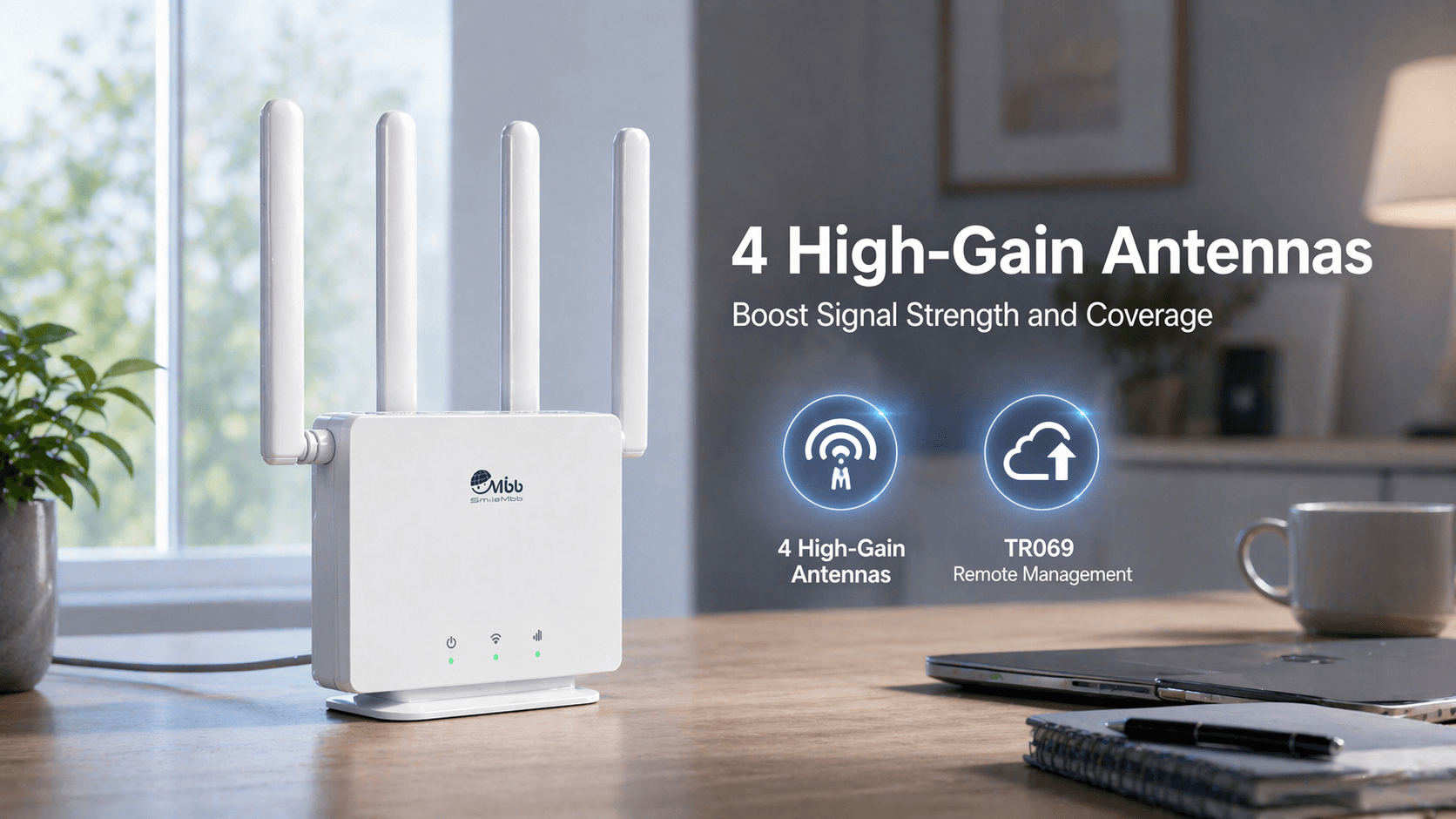

4 High-Gain Antennas for Stronger, Wider Coverage
Multi-Scenario Compatibility
|
Technical parameter |
|
|
Product Name |

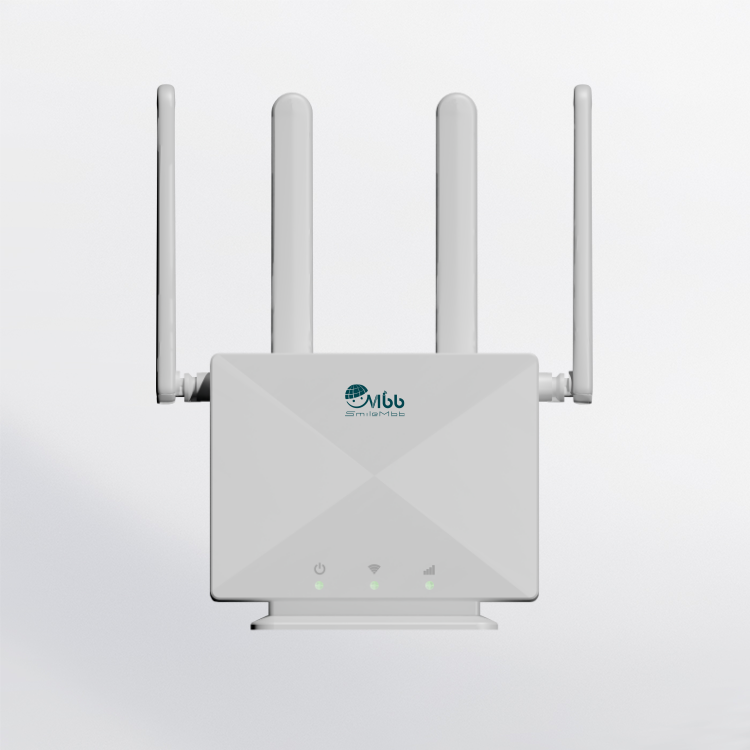

XMC2846 |
|
Chip Platform |
ASR1828 |
|
Frequency Bands |
XMC2846-EU: FDD LTE: B1/B3/B5/B7/B8/B20/B28 TDD LTE: B38/B40/B41/B42/B43 UMTS: B1/B5/B8 XMC2846-AU： LTE-FDD: B1\B2\B3\B4\B5\B7\B8\B28\B66 LTE-TDD: B40 WCDMA: B1\B2\B4\B5\B8 |
|
Protocol Version |
4G:3GPP Release 10, 3G: 3GPP Release 8 |
|
Antennas |
MIMO: 2 * 2 LTE Antennas MIMO: 2 * 2 WIFI Antennas |
|
Battery |
4000 mAh (Default), 18650 Battery |
|
Data Rate |
4G: 3GPP R9 Cat4, DL/UL up to 300Mbps/50Mbps |
|
Wi-Fi Standard |
802.11a/b/g/n/ac/ax; Wi-Fi 6 5.8GHz 2 x 2 MIMO 802.11a/n/ac/ax, 80MHz: Up to 1200 Mbps |
|
Size |
148*124*40.5mm |
|
Power Supply |
12V/1A |
|

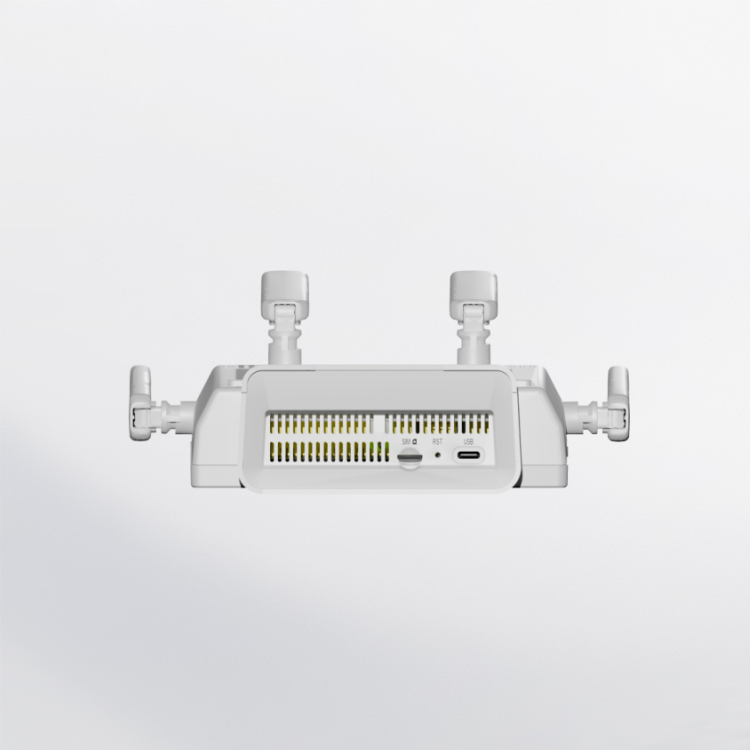

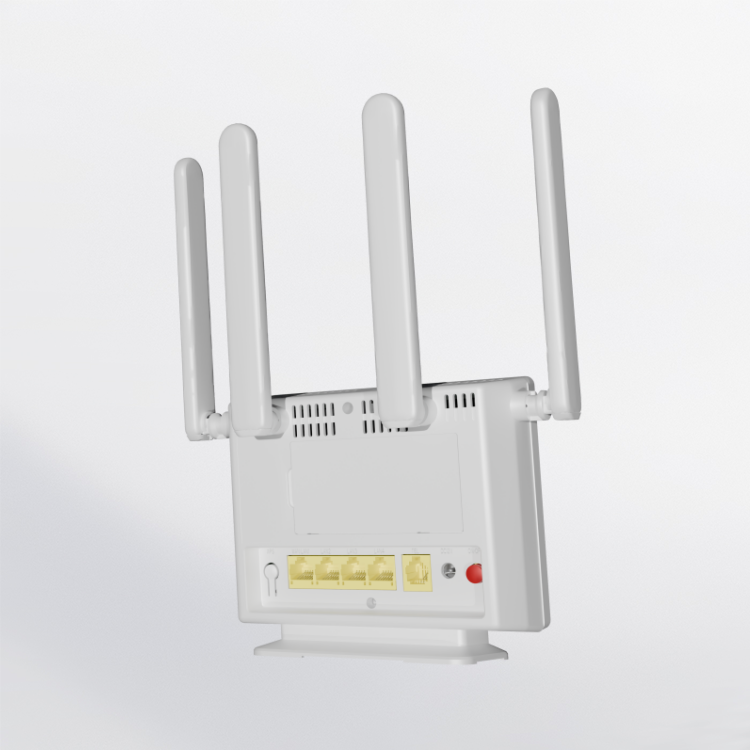

Physical interface |
3GE*LAN Port+ 1*GE WAN/LAN Port, 1 x Type C Port, 1 x RJ11 Port, 1 x SIM Card (4FF nano), 1 x DC Power Supply (12V/1A) |
|
Button |
1x ON/OFF button, 1x WPS, 1x Reset |
|
Characteristic |
VPN Pass-Through Support APN, Firewall, Local & Remote management |
